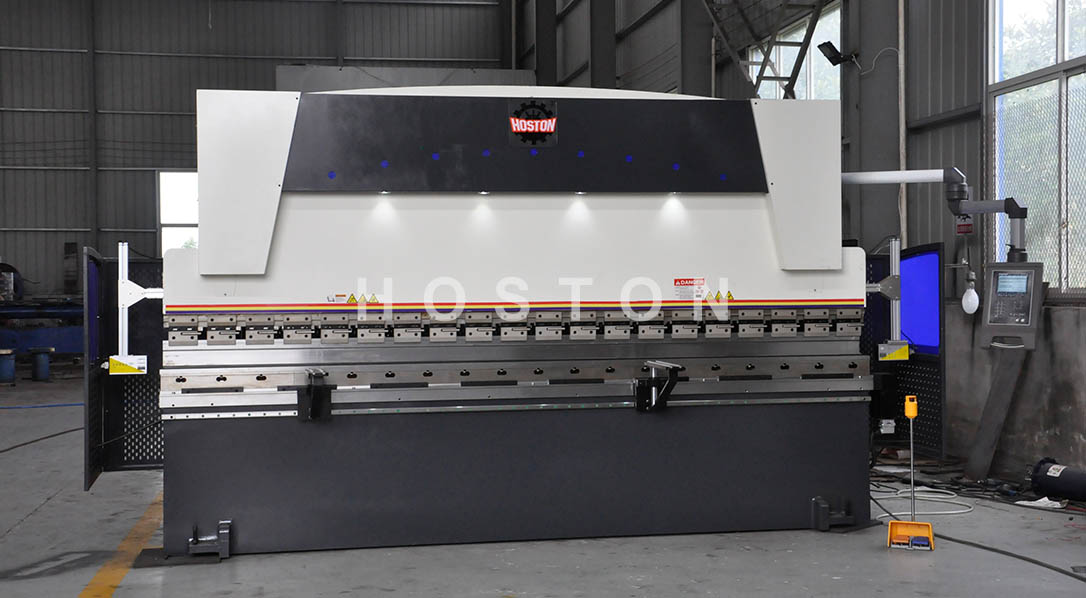

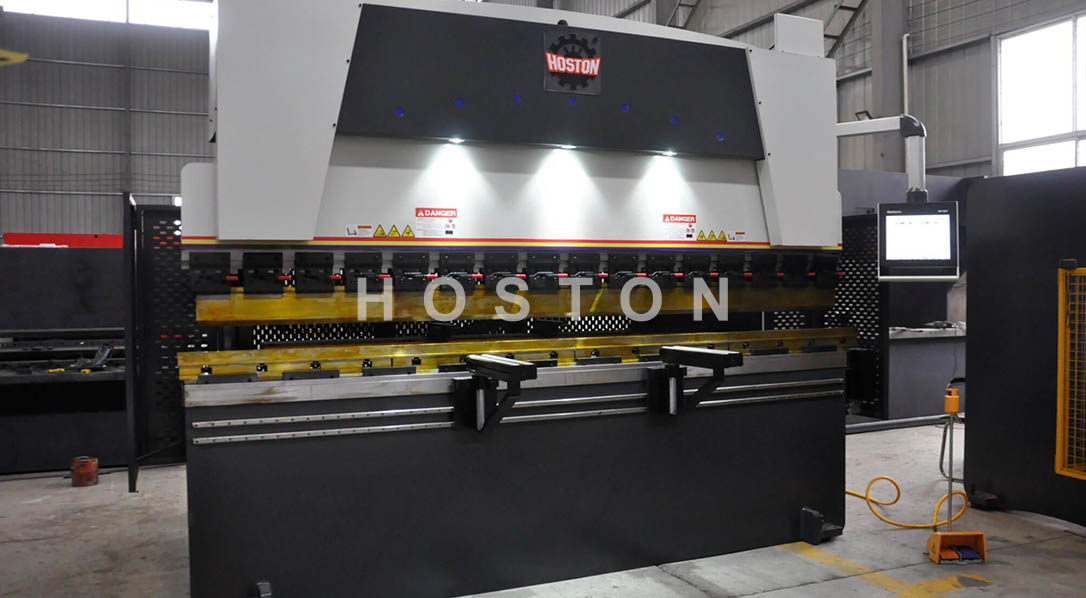

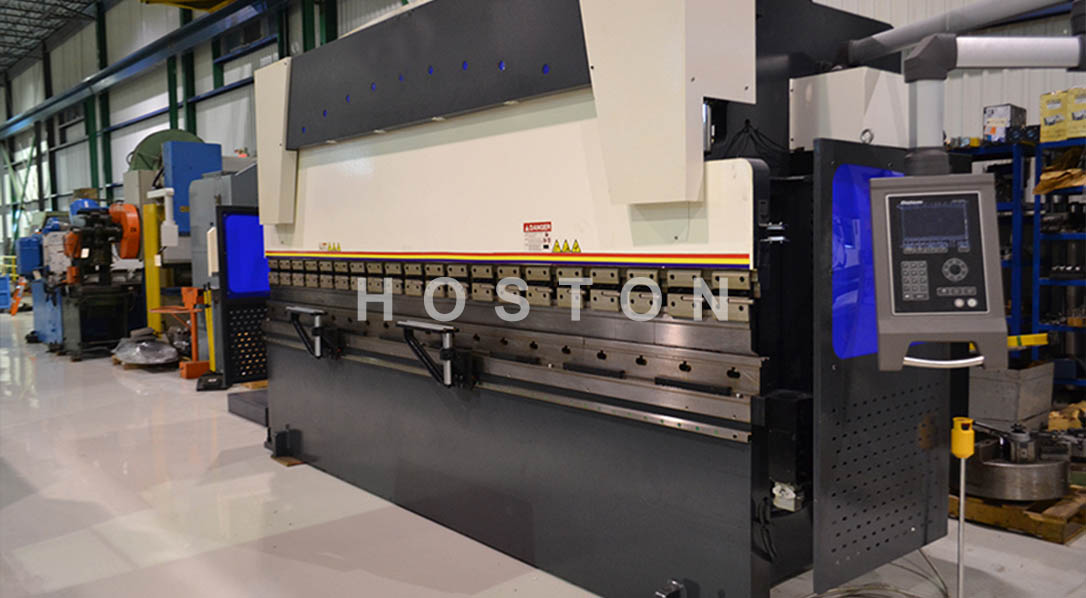

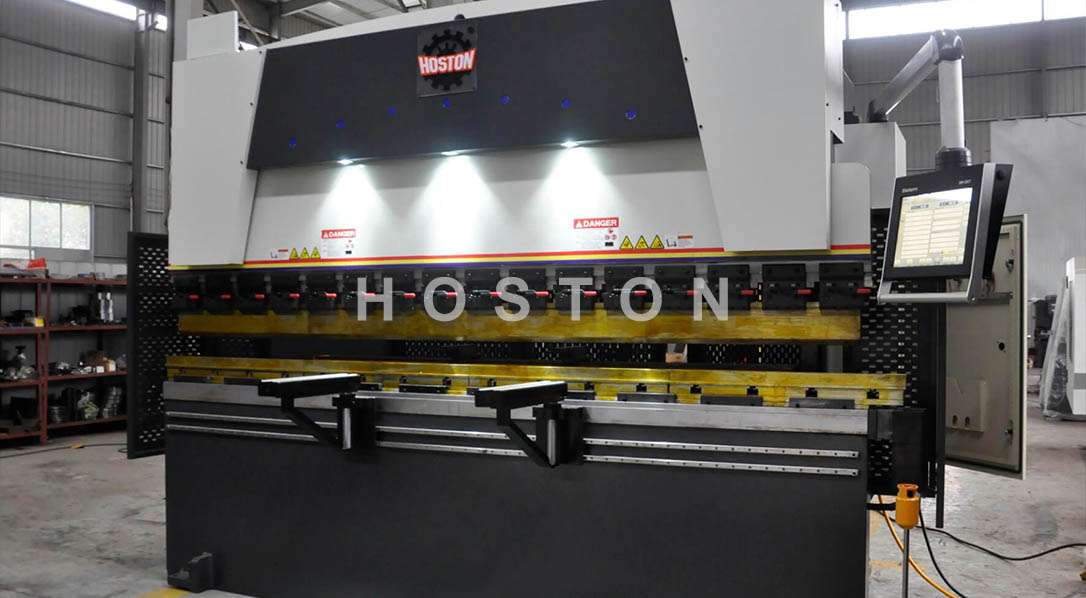

CNC Electro-hydraulic Servo Press Brake Machine(3+1 axis or above)

CNC Electro-hydraulic Servo Press Brake Machine(3 1 axis or above)

CNC Electro-hydraulic Servo Press Brake Machine(3+1 axis or above) CNC Electro-hydraulic Servo Press Brake Machine(3+1 axis or above) CNC Electro-hydraulic Servo Press Brake Machine(3+1 axis or above) CNC Electro-hydraulic Servo Press Brake Machine(3+1 axis or above) CNC Electro-hydraulic Servo Press Brake Machine(3+1 axis or above) CNC Electro-hydraulic Servo Press Brake Machine(3+1 axis or above) CNC Electro-hydraulic Servo Press Brake Machine(3+1 axis or above) CNC Electro-hydraulic Servo Press Brake Machine(3+1 axis or above)
产品描述

■  All sections are designed to give minimum deflections and maximum rigidity as per international standards.

■  Pair of hydraulic cylinders are synchronized by a heavy duty torque tube welded to the levers. This offers absolute parallelism between them and table working surfaces.

■  The low noise Hydraulic system is designed as per international standards and assembled with internationally reputed make components.

■  Valves are mounted on a specially designed compact manifold block minimizing pipings and chances of leakages. The large sized oil reservoir provides adequate cooling.

■  Imported sealing kit prevents scratching of bore in case of seal failure and backup seal offers additional sealing enabling to use machine for sometime at a little pressure drop while awaiting seal replacement, thus avoiding downtime.

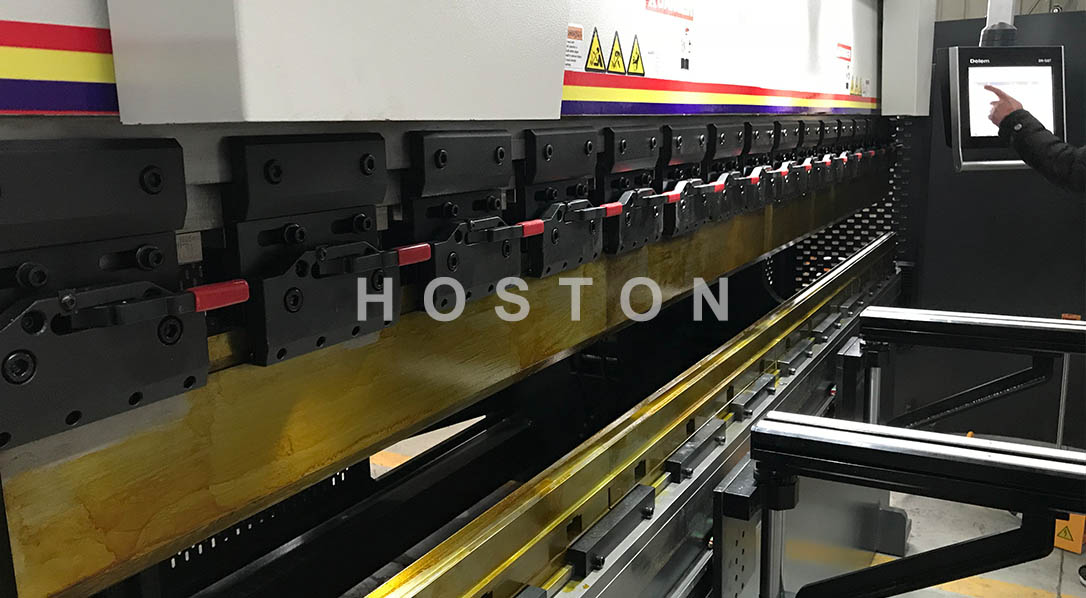

■  Strong rigid torsion bar design, ensuring the synchronous movement of ram stroke

■  Built-in mechanical stop, ensuring an accurate positioning of ram stroke

■  Delem CNC controller, with high performance-price ratio, reliable performance and easy operation

■  Delem CNC controller controls X, Y, R axis to achieve high production efficiency and parts of precision

■  Variable frequency motor or servo motor is used to get a rapid and accurate positioning


用户评论

Good workmanship, reasonable design and friendly service
