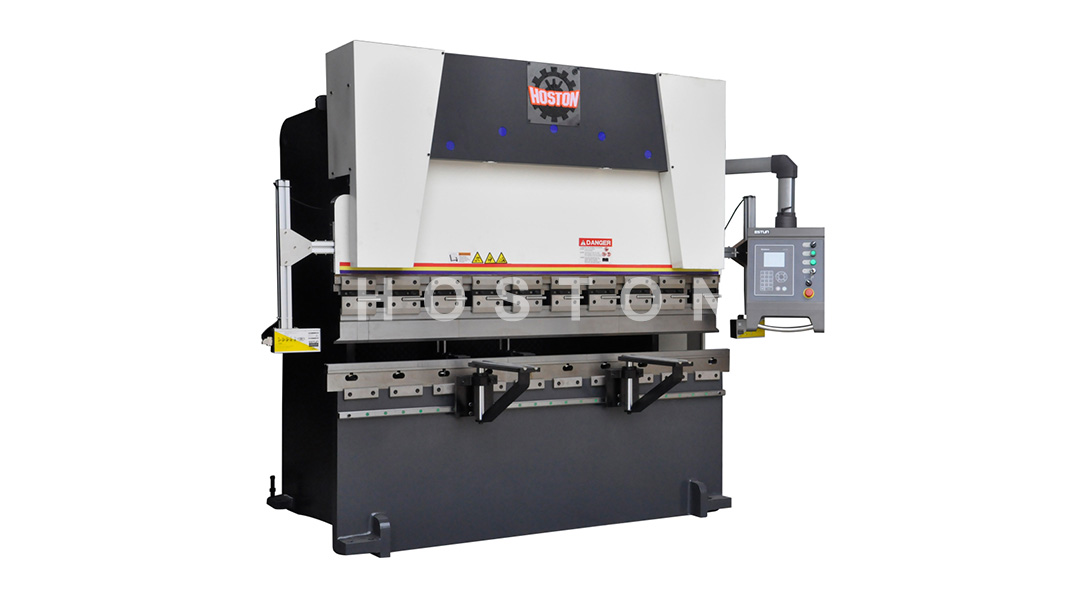

CNC Hydraulic Torsion Press Brake Machine(2 axis)

CNC Hydraulic Torsion Press Brake Machine(2  axis)

CNC Hydraulic Torsion Press Brake Machine(2  axis) CNC Hydraulic Torsion Press Brake Machine(2  axis) CNC Hydraulic Torsion Press Brake Machine(2  axis) CNC Hydraulic Torsion Press Brake Machine(2  axis) CNC Hydraulic Torsion Press Brake Machine(2  axis) CNC Hydraulic Torsion Press Brake Machine(2  axis) CNC Hydraulic Torsion Press Brake Machine(2  axis) CNC Hydraulic Torsion Press Brake Machine(2  axis)
产品描述

■  All sections are designed to give minimum deflections and maximum rigidity as per international standards.

■  Pair of hydraulic cylinders are synchronized by a heavy duty torque tube welded to the levers. This offers absolute parallelism between them and table working surfaces.

■  The low noise Hydraulic system is designed as per international standards and assembled with internationally reputed make components.

■  Valves are mounted on a specially designed compact manifold block minimizing pipings and chances of leakages. The large sized oil reservoir provides adequate cooling.

■  Imported sealing kit prevents scratching of bore in case of seal failure and backup seal offers additional sealing enabling to use machine for sometime at a little pressure drop while awaiting seal replacement, thus avoiding downtime.

■  Strong rigid torsion bar design, ensuring the synchronous movement of ram stroke

■  Built-in mechanical stop, ensuring an accurate positioning of ram stroke

■  Estun/ Delem CNC controller, with high performance-price ratio, reliable performance and easy operation

■  Estun/ Delem CNC controller controls X,Y axes to achieve high production efficiency and parts of precision

■  Variable frequency motor or servo motor is used to get a rapid and accurate positioning


用户评论

Good workmanship, reasonable design and friendly service
